Avoiding Firmware Pitfalls in Wi-Fi IoT Devices: Security, Stability, and Reliable OTA Updates

Firmware development for Wi-Fi IoT devices can be a real head-scratcher. Connectivity is often unstable, devices compete for bandwidth in shared IP environments, and the security bar is much higher than in wired systems. Besides being technical hurdles, these also have serious business consequences.

Faulty IoT firmware recalls, customer frustration, and compliance penalties hit your bottom line hard. Even more concerning, Microsoft reveals that 57% of devices on legacy firmware are exploitable to more than 10 known common vulnerabilities and exposures. That’s a significant risk for any company shipping Wi-Fi devices to the market.

But worry not, as we’re going to explain how to tackle IoT firmware security challenges, ensure stability, and roll out reliable OTA updates. We’ll back these insights up with our real-world firmware development services and projects, such as Propuskator, MyBox, Intellect, and more.

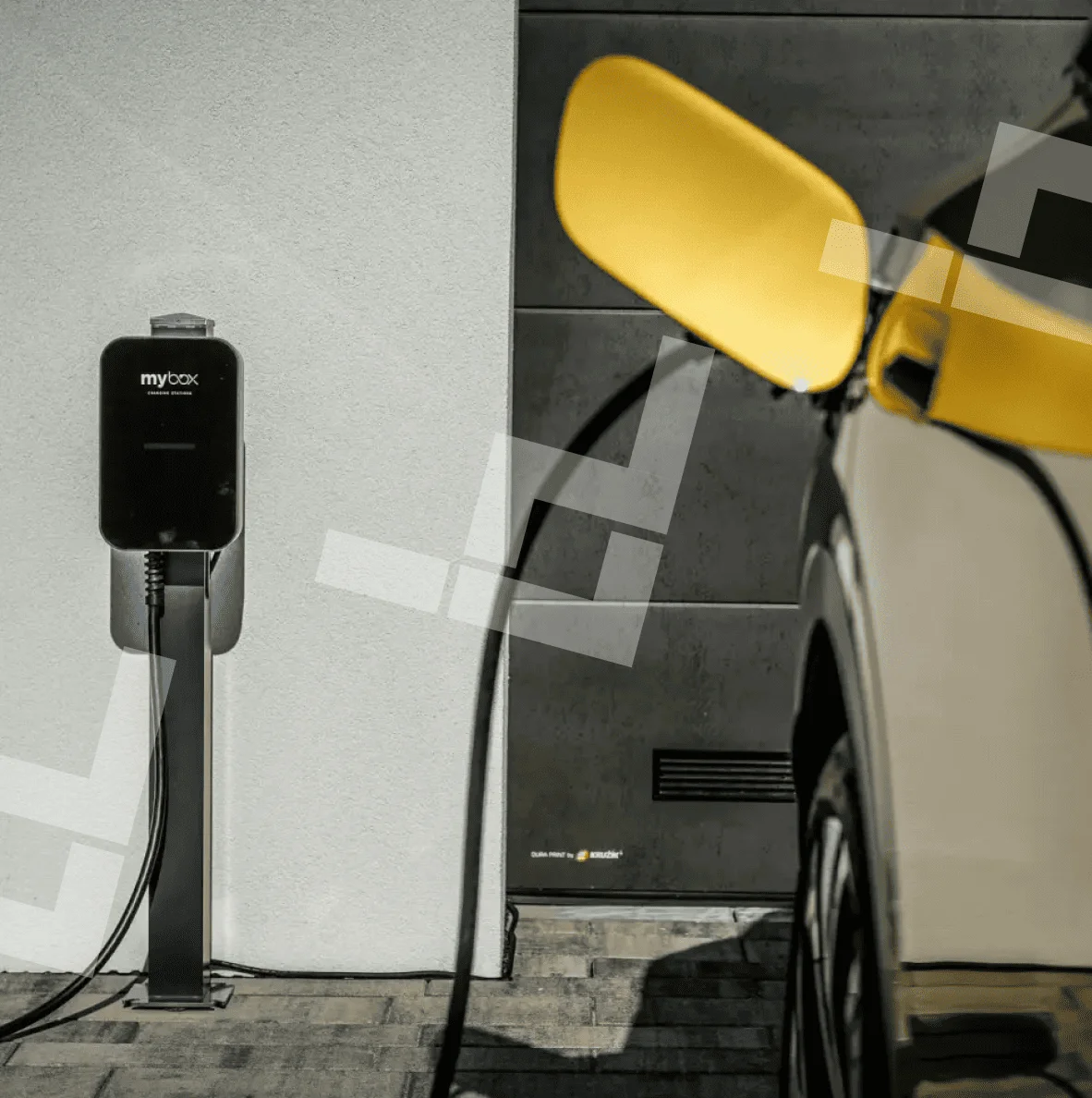

An EV charging station, MyBox

Highlights:

• Secure boot, code signing, encrypted communication, and OTA best practices are the backbone of IoT firmware security.
• Robust frameworks, memory-safe coding, and watchdog timers are a must for firmware reliability.
• Over-the-air updates for Wi-Fi IoT become a breeze with dual-bank images, incremental upgrades, and smart versioning.

Why Firmware in Wi-Fi IoT Devices Is So Challenging

Developing firmware for Wi-Fi IoT devices is fundamentally different from other IoT protocols. The reason lies in the nature of Wi-Fi itself. Here’s what sets it apart:

• Signal instability. Unlike wired connections, which are predictable and stable, Wi-Fi is prone to interference, roaming, and fluctuating signal strength (RSSI). Firmware must therefore incorporate logic for handling unstable Wi-Fi connectivity in IoT devices, including retries, data buffering, and recovery scenarios after interruptions. Without this, devices appear unreliable and frustrate end users.
• Direct-to-cloud IoT communication. Unlike Zigbee or Bluetooth, which use a gateway for cloud sync and security, Wi-Fi devices connect directly to the cloud. This means security mechanisms, including authentication, encryption, and data integrity verification, must be embedded into the firmware itself. The Wi-Fi firmware must also support secure protocols, such as MQTT, HTTPS, and WebSockets. All this makes it more complex and demanding on microcontroller resources.
• Larger functional stack. Setup and onboarding, user authentication and access control, reconnection and failover logic, telemetry collection and cloud sync, and offline fallback modes are must-haves in Wi-Fi devices. Yet, these increase Wi-Fi IoT firmware complexity and size.

Every new Wi-Fi firmware feature adds lines of code. With more code comes more complexity, more potential bugs, and more security risks.

Kostiantyn Oliynyk

Head of IoT at Webbylab

It’s clear why the challenges of IoT firmware development are amplified with Wi-Fi.

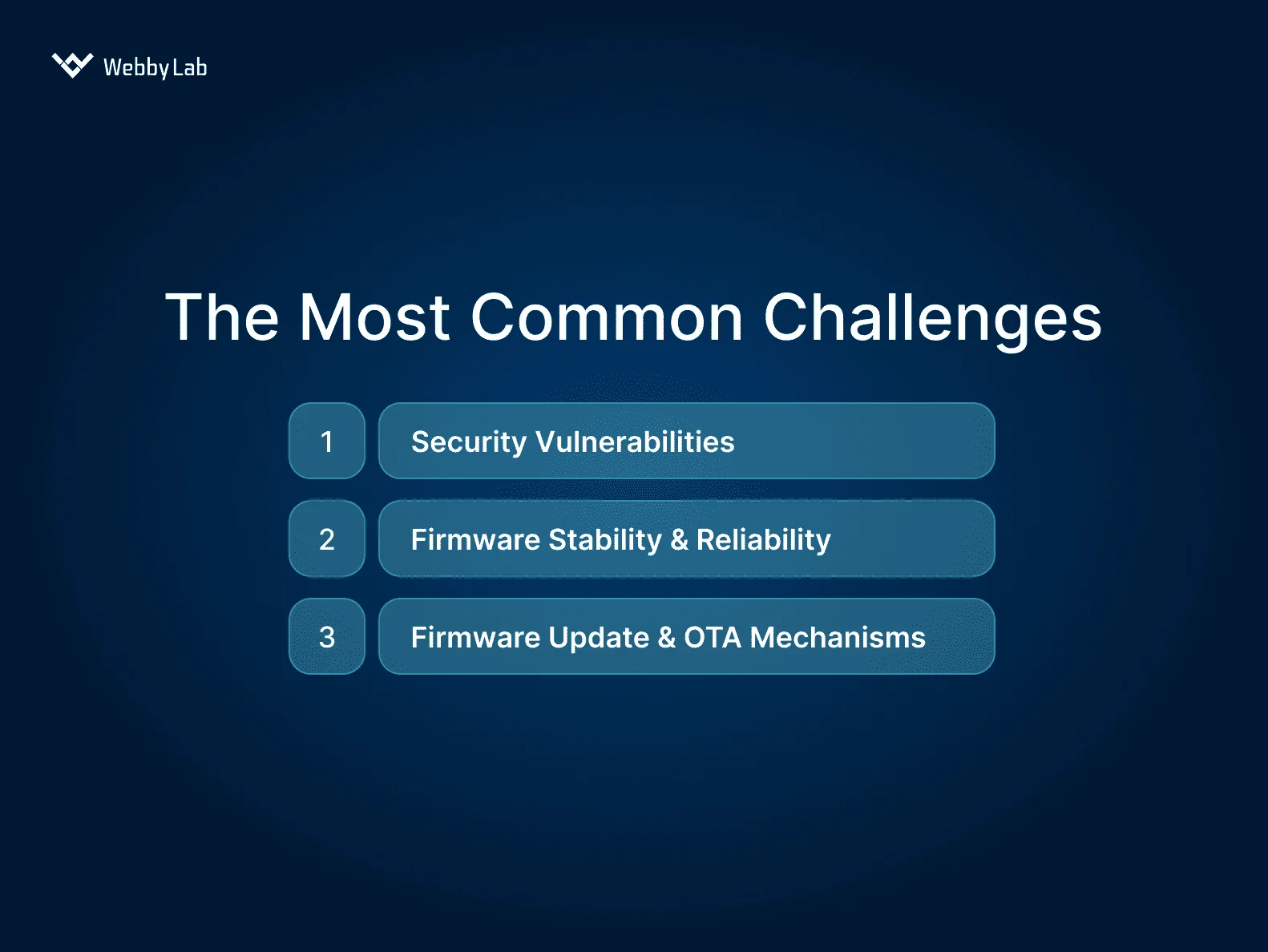

What Are the Most Common Challenges in Modern Firmware Development?

Firmware for Wi-Fi IoT devices has to be secure, stable, and easy to update. These are, in fact, the three most pressing areas where developers face pitfalls. Let’s look at the challenges more closely.

Security Vulnerabilities

Security is one of the most critical aspects of firmware development. Weak points in embedded code can open the door to serious IoT firmware security vulnerabilities. The most frequent issues are:

• Weak or hardcoded credentials. A single compromised key can expose an entire fleet.
• Unsecured communication. Unencrypted Wi-Fi or API calls leave your data in plain sight.
• Firmware tampering. Attackers can replace legitimate firmware with malicious versions during transit.
• Weak or missing code signing. Allows for unauthorized or outdated builds to be installed.

For example, a smart home camera with hardcoded credentials is an easy target for attackers. They can find the shared password in the firmware binary and use it to access the device’s local network.

Luckily, you can mitigate these issues through:

• Secure boot and code signing IoT. Make sure only authentic code can run on the device.
• Encrypted OTA updates. Use protocols such as TLS, HTTPS, or mutual authentication to ensure updates are private and from a trusted source.
• No hardcoded credentials. Avoid hardcoded secrets by generating unique keys dynamically for each device and storing them in secure hardware, such as eFuse.
• Regular security audits. Handle proactive threat modeling and vulnerability scanning to stay ahead of new CVEs.

For more information about fixing vulnerable devices, check out our guide on IoT device firmware remediation.

Close

×

Email*

Firmware Stability & Reliability

Even if the firmware is secure, it must also be stable. Wi-Fi makes it complex — when combined with sensors, actuators, and cloud logic, devices can become flaky. Common IoT firmware stability issues include:

• Memory leaks. The incorrect operation of the Wi-Fi stack degrades performance over time until the device crashes.
• Watchdog failures. The system fails to reset a frozen process.
• Concurrency problems. A sensor task might conflict with Wi-Fi operation, which may result in unpredictable behavior.
• Poor power-cycle resilience. Leaves devices “bricked” after sudden outages.
• Corrupted flash sectors. These cannot reliably store data after repeated writes or power interruptions.

Let’s look at the possible negative impact in real life. A smart thermostat may freeze after every Wi-Fi drop because it lacks reconnection backoff logic. Or, for example, a sensor might provide extremely fluctuating sensor readings when the Wi-Fi stack consumes too much CPU time.

To deal with these common firmware vulnerabilities in IoT devices, you can use:

• Robust frameworks. Leverage a real-time operating system (RTOS) or a proven embedded framework.
• Memory-safe coding. Implement static analysis tools, such as clang-tidy or cppcheck, and adopt memory-safe coding practices.
• Stress tests. Simulate power cycles, Wi-Fi instability, and sensor failures.
• Watchdog timers. Employ watchdog timers IoT firmware and fail-safe recovery modes.

For us, IoT firmware reliability and stability are not about preventing every crash. It’s about ensuring the device can detect, recover, and keep serving users without a manual reset.

Kostiantyn Oliynyk

Head of IoT at Webbylab

Firmware Update & OTA Mechanisms

Once a device is in the field, its firmware will need updates to stay relevant and safe. But designing OTA firmware updates for IoT devices introduces its own set of risks:

• Bricking devices. A failed update leaves the device in an unusable state.
• Partial downloads or failed binary diffs. These result in the corrupted firmware.
• Rollback issues. If a buggy build replaces a working one without a fallback.
• Missing version checks. Lead to accidental downgrades or incompatible firmware being installed.

To ensure OTA firmware updates for IoT devices are reliable, consider these solutions:

• Dual-bank or A/B firmware images. The A/B firmware updates IoT mean the device keeps two firmware partitions. One is active while the other receives the new update. If the update fails, the device can simply roll back to the previous working version.
• Atomic updates and integrity checks. Ensure the update process is uninterrupted, for example, via checksums or digital signatures.
• Incremental (delta) updates. Reduce bandwidth by only sending the new changes on top of the old version.
• Smart versioning and staged rollout. Minimize fleet-wide failures.
• User feedback. Includes the possibility to report the success or failure of the IoT device remote update, so you can diagnose and fix issues.

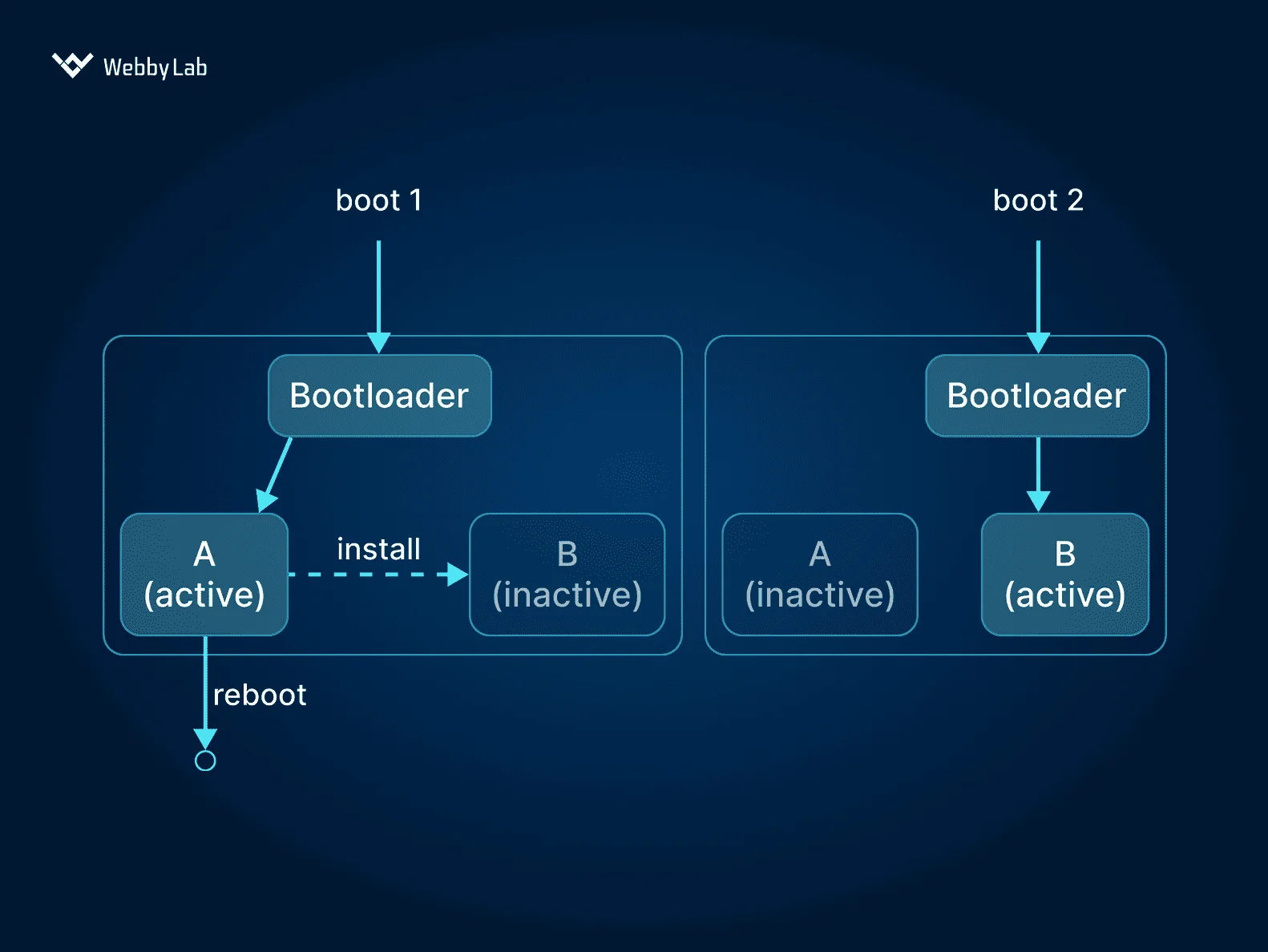

The A/B firmware update diagram

How to Turn Firmware Development Challenges into Opportunities?

Every challenge in firmware development can also be a lever for differentiation. When handled correctly, connectivity drops, OTA risks, or security gaps can become strengths, offering faster updates, stronger protection, and higher customer trust. This is where companies can gain a real competitive advantage with secure IoT firmware.

At WebbyLab, we’ve seen this across plenty of projects:

• A/C drain line cleaner. Selected the ESP32-S2 microcontroller and tailored firmware to maximize Wi-Fi stability and enable predictive maintenance IoT firmware.
• MyBox EV charging stations. Built a single, versatile firmware for different hardware setups, enabling a unified, cloud-based charger control platform.
• Propuskator access controllers. Delivered firmware to regulate locks, gate drives, and barriers.
• Intellect LED lamps. Optimized firmware for ESP8266, balancing cost efficiency with remote control capabilities.
• IoT firmware solution for heating systems. Consulted on firmware revisions to improve efficiency and control.
• Zigbee Gateway devices. Provided consulting that accelerated the launch to under one month with optimized firmware design.
• Thermostat. Upgraded a $30 thermostat into a feature-rich controller with 12 channels, voice commands, and advanced climate logic.
• WOW Fire Lamp. Created smart lighting firmware with OTA updates, ensuring continuous feature rollouts.

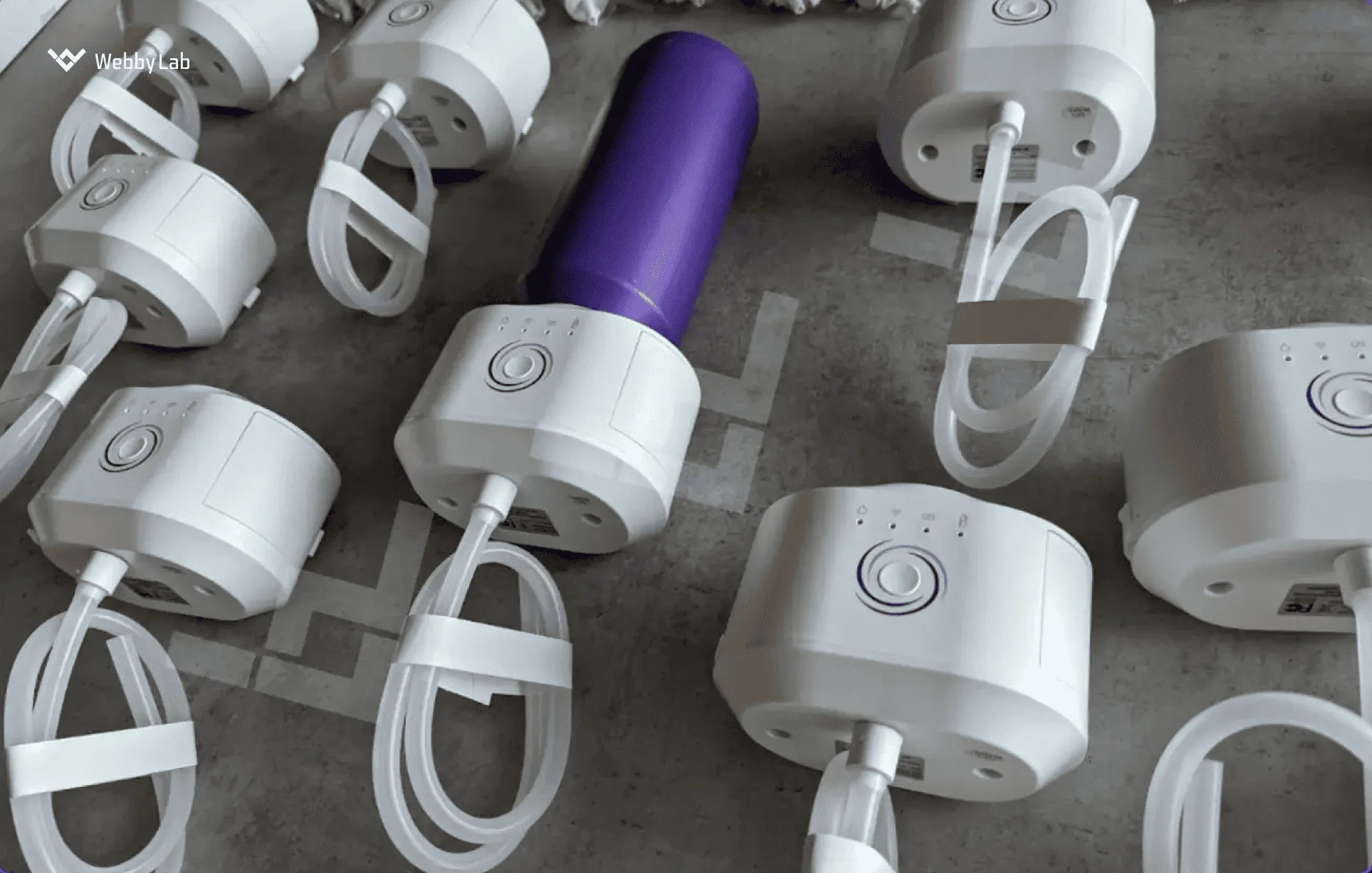

A/C drain line cleaners WebbyLab delivered firmware for

Every device has unique business logic, but the recurring firmware problems, such as stability, security, and updates, are solved with proven patterns we refine project after project.

Kostiantyn Oliynyk

Head of IoT at Webbylab

Identification and Basic Functions Checklist

When developing firmware for Wi-Fi IoT devices, it’s easy to get caught up in business logic and new features. But before that, your device needs a reliable foundation.

In particular, each IoT device must have a unique identifier to securely connect with cloud services, handle resets, support encrypted OTA firmware updates, and ensure communication resilience. An ID can be generated via the device’s built-in MAC address and further stored in eFuse or flash memory during production.

Besides that, an IoT firmware security checklist includes:

• Secure boot in IoT devices. Ensures only signed, trusted firmware can be installed.
• OTA firmware testing best practices. Test updates under power loss, bad Wi-Fi, or server outages.
• Watchdog timers. Both hardware and software watchdog timers in embedded systems are enabled to auto-recover from freezes.
• Memory leaks in IoT firmware. Use static analysis and stress testing to confirm stability.
• Encrypted IoT communication. Enforce TLS/DTLS, MQTT/HTTPS/WebSockets for cloud, block unencrypted traffic.

Need help with testing your Wi-Fi IoT firmware?

Let ChatGPT select the best approach for you.

Ask ChatGPT

Final Words

Addressing Wi-Fi IoT devices firmware stability issues, security risks, and update robustness is now a business necessity. When built professionally, firmware can make a difference between lost trust and recalled devices and long-term product success.

How to Avoid Firmware Pitfalls?

Avoiding IoT firmware pitfalls is easy with the following best practices:

• Secure boot and firmware signing for IoT
• Encrypted communication
• Watchdog timers
• A/B OTA firmware update strategy
• Logging and remote diagnostics
• Energy optimization
